Microsoft Office Online Server Remote Code Execution

Microsoft’s Office Online Server is the next generation of Office Web Apps Server; it provides a browser based viewer/editor for Word, PowerPoint, Excel and OneNote documents. The product can be integrated with SharePoint to provide web based access to these documents within Sharepoint.

During a routine penetration test, MDSec discovered a Server-Side Request Forgery vulnerability that, under the right conditions, can be exploited to achieve remote code execution on the Office Online Server itself.

The Vulnerability

The /op/view.aspx endpoint within Office Online Server is intended to be used for retrieving Office documents from remote resources and displaying them within the browser. The endpoint is affected by a classic Server-Side Request Forgery, whereby providing it with a HTTP(s) or UNC location will initiate a connection from the application.

MDSec witnessed this vulnerability within Office Online Server versions 16.0.10338.20039 and below.

Exploitation

The aforementioned vulnerable endpoint can be exploited using a simple, unauthenticated GET request. The example below illustrates how internal resources can be fingerprinted using timing based attacks to identify valid IP addresses:

While enumeration is interesting, code execution is better. During analysis, it was further noted that the connections from Office Online Server were performed using the machine account of the host, facilitating coerced authentication. This of course raises some interesting options for exploitation, as the machine account can be relayed to other resources such as LDAP (to add shadow credentials) or Active Directory Certificate Services (to recover a client certificate for PKINIT authentication).

Assuming the Office Online Server is able to access an attacker controlled SMB server, the SSRF can be submitted to ntlmrelayx and subsequently relayed to ADCS, as shown below:

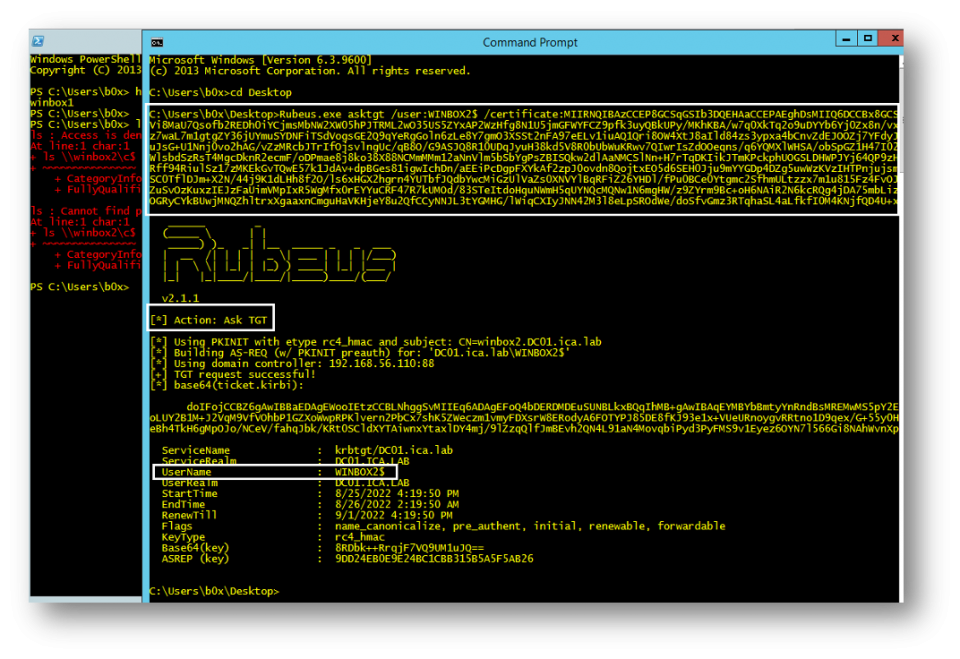

Using the certificate, it is possible to obtain a TGT for the server:

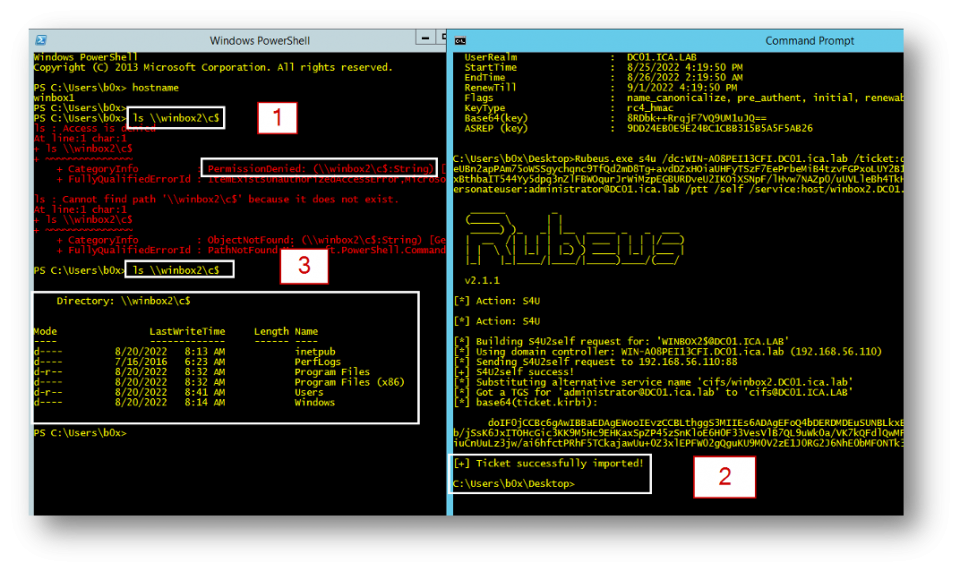

Using the TGT, a s4u2Self request can be made to receive a forged service ticket for the server, leading to local administrator privileges on the Office Online Server host:

A similar end result could almost certainly be achieved by leveraging ntlmrelayx to relay to LDAP and to perform a shadow credential attack, but this is left as an exercise for the reader.

MDSec informed Microsoft MSRC of this vulnerability, but it was considered intended use for the endpoint and determined to be a “won’t fix”.

Timeline

23/08/2022 – MDSec provide a description of the SSRF to MSRC.

12/09/2022 – MSRC indicate that this feature is by design and that as a mitigation, Internet connected servers should “lock down ports and any accounts on that farm to have least privilege”. Additionally, setting the OpenFromUNCEnabled flag to false can disable this feature.

This blog post was written by Manish Tanwar.
