I Like to Move It: Windows Lateral Movement Part 3: DLL Hijacking

Overview

In the past two posts of this series, we’ve covered lateral movement through WMI event subscriptions and DCOM, detailing approaches to improve the OpSec of our tradecraft.

In the final post of this series, we will provide an overview of how DLL hijacking can be used for lateral movement. Traditionally, DLL hijacking is more commonly associated with its use in persistence and privilege escalation attacks. However, in certain circumstances it can also be used for lateral movement, as was shown in this post by Dwight Hohnstein from SpecterOps where hijacks were demonstrated using the Service Control Manager. What we will show in this post is that the scope for DLL hijacks for lateral movement is much broader, illustrating examples of how it can be achieved across other services such as WMI and DCOM.

DLL Hijacking Prerequisites

We don’t intend to cover what DLL hijacking is, there is already an expectation that you are familiar with how the module load search order can be hijacked and this is covered in detail in many other resources, including:

Identifying DLL Hijacks

Discovering DLL hijacks is a relatively straightforward process because there are so many of them. To do this, I typically use procmon with the following filters:

  • Path ends with “.dll”
  • Result is “NAME NOT FOUND”

Following this, it’s simply a case of interacting with the remote system and monitoring the results if you’re looking for opportunities for lateral movement.

To interact with the remote system, there are various options at your disposal, including:

  • WMI;
  • DCOM;
  • Powershell Remoting;
  • SMB;
  • Service Control Manager and other running services.

However, be aware that not all of them may lead to a DLL hijack.

If however you have time on your side and you’re not looking for an immediate beacon, various events will occur on the remote system over time that will just naturally lead to missing DLLs. For example, from this Windows 10 host we can see “C:\Windows\System32\edgegdi.dll” is being looked for by various processes when the system was just left without any interaction for several minutes, including gpupdate.exe which will run in line with the group policy refresh period which by default is set to every 90 minutes:

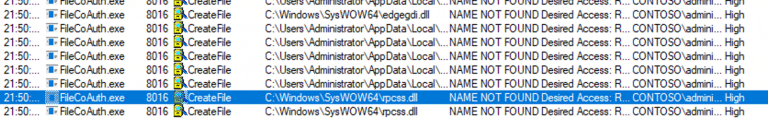

Other good options include various default applications such as OneDrive, which will just periodically perform actions that lead to DLL hijacking opportunities. The ones shown below in FileCoAuth.exe were seen to run every few minutes:

Or alternatively, the DiagTrack service which looks for “C:\Windows\System32\windowscoredeviceinfo.dll” at regular intervals:

Now that we’ve examined the methods of finding DLL hijacks, let’s take a look at how to exploit them.

Exploiting DLL Hijacking

Once you’ve found a suitable DLL to hijack, to exploit this for the purposes of lateral movement, you will want to plant your DLL on the remote system using SMB.

When your planted DLL is loaded, there are various approaches to hijacking execution, but most likely you will want your DLL to act as a proxy to the real DLL to minimize the chances of interrupting normal operations. A number of techniques are able to achieve this and we would highly recommend reading the “Adaptive DLL Hijacking” post by Nick Landers from Silent Break Security.

Perhaps the simplest approach to DLL proxying is export forwarding. This technique involves simply telling the loader to forward any exports to the real DLL and our loader DLL might simply include something like the following to hijack calls to version.dll:

#pragma comment(linker,"/export:GetFileVersionInfoA=C:/Windows/System32/version.GetFileVersionInfoA,@1")
#pragma comment(linker,"/export:GetFileVersionInfoByHandle=C:/Windows/System32/version.GetFileVersionInfoByHandle,@2")
#pragma comment(linker,"/export:GetFileVersionInfoExA=C:/Windows/System32/version.GetFileVersionInfoExA,@3")
#pragma comment(linker,"/export:GetFileVersionInfoExW=C:/Windows/System32/version.GetFileVersionInfoExW,@4")
#pragma comment(linker,"/export:GetFileVersionInfoSizeA=C:/Windows/System32/version.GetFileVersionInfoSizeA,@5")
#pragma comment(linker,"/export:GetFileVersionInfoSizeExA=C:/Windows/System32/version.GetFileVersionInfoSizeExA,@6")
#pragma comment(linker,"/export:GetFileVersionInfoSizeExW=C:/Windows/System32/version.GetFileVersionInfoSizeExW,@7")

In addition to the aforementioned post, Nick also released Koppeling, an awesome little toolkit that allows you to clone the export table from one DLL to another, meaning that there is no requirement to manually build a proxy DLL from source.

Let’s look at some case studies for where DLL hijacking can be used for lateral movement.

Case Study: WMI Hijacking

As previously mentioned, one of the potential ways we can leverage a DLL hijack for lateral movement is by hijacking something that we can remotely interact with. The first example of this is wmiprvse.exe, the WMI provider host which spawns any time a WMI connection is initiated.

No queries need to be executed to cause wmiprvse.exe to spawn, a simple authentication can be used with C# similar to the following:

ConnectionOptions cOption = new ConnectionOptions();
ManagementScope scope = null;
scope = new ManagementScope(NAMESPACE, cOption);
if (!String.IsNullOrEmpty(ACTIVE_DIRECTORY_USERNAME) && !String.IsNullOrEmpty(ACTIVE_DIRECTORY_PASSWORD))
{
	scope.Options.Username = ACTIVE_DIRECTORY_USERNAME;
	scope.Options.Password = ACTIVE_DIRECTORY_PASSWORD;
	scope.Options.Authority = string.Format("ntlmdomain:{0}", ACTIVE_DIRECTORY_DOMAIN);
}
scope.Options.EnablePrivileges = true;
scope.Options.Authentication = AuthenticationLevel.PacketPrivacy;
scope.Options.Impersonation = ImpersonationLevel.Impersonate;
try {
	Console.WriteLine("[*] Attempting to connect to host " + Config.REMOTE_HOST);
	scope.Connect();
}

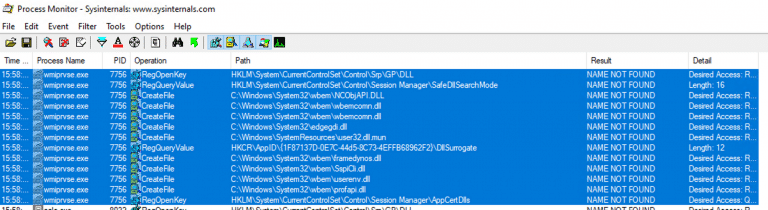

Monitoring wmiprvse.exe with procmon while initiating this WMI connection, we discover several DLLs that are being searched for and therefore potentially good candidates for hijacking:

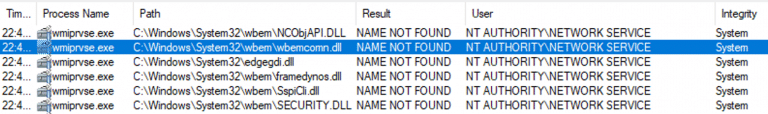

Taking a closer look, we can see that the process is running as the NETWORK SERVICE user:

Planting a proxy DLL in one of these locations using SMB will provide code execution with NETWORK SERVICE privileges when wmiprvse.exe spawns, this is only a hop, skip and a jump away from SYSTEM and we can trivially escalate using one of the potato exploits such as @EthicalChaos‘s SweetPotato.

In order to exploit this, we simply need to craft a weaponised DLL, then apply the export forwarding using @monoxgasNetClone.exe:

The DLL can then be planted on the remote system using SMB in the correct location where wmiprvse.exe is searching (c:\windows\system32\wbem\wbemcomn.dll), then trigger or wait for a WMI connection to occur. Let’s take a look at this in action:

Case Study: DCOM Hijacking

WMI is of course not the only potential vector for interacting with a remote system. In my previous post, I discussed some of the options for using DCOM for lateral movement and how defenders could monitor for the use of these known classes. But what if almost any class exposed via DCOM could lead to lateral movement?… enter DLL hijacking.

The methodology for identifying DCOM exposed classes susceptible to DLL hijacking is similar to that previously discussed. While instantiating the chosen class, monitor the relevant processes using procmon to identify missing DLLs; no methods necessarily need to be invoked.

Using the InternetExplorer.Application class as an example, we can instantiate the object:

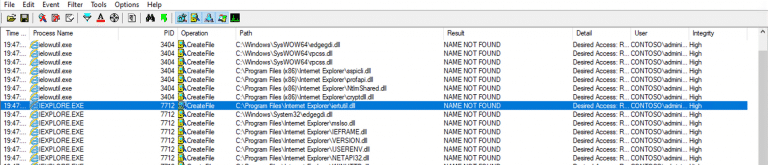

While monitoring iexplore.exe, several DLLs will be shown to be missing:

This can be exploited in a similar way to WMI, by first planting the DLL, in this case in “c:\Program Files\Internet Explorer\iertutil.dll“, then remotely instantiating an InternetExplorer.Application object:

Detection

Detection of lateral movement through DLL hijacking is not entirely trivial, several events may need to be correlated to reliably identify these attacks. One approach to detection is to focus on the DLL planting and several events can assist with this.

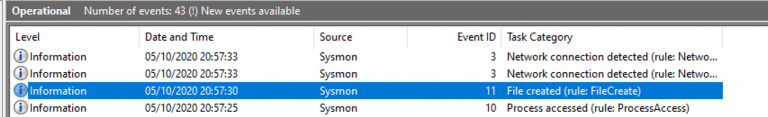

Specifically, events 11 (FileCreate) and 3 (Network connection) are of interest:

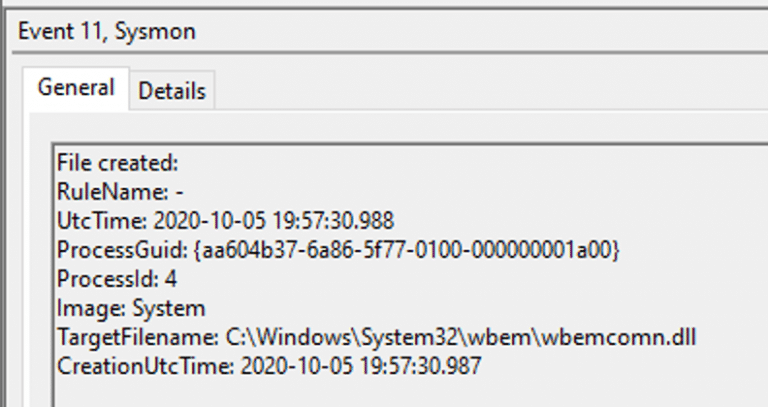

Monitoring for Event 11, you will see a DLL in the TargetFilename field, indicating that a DLL has been created on the filesystem as shown below:

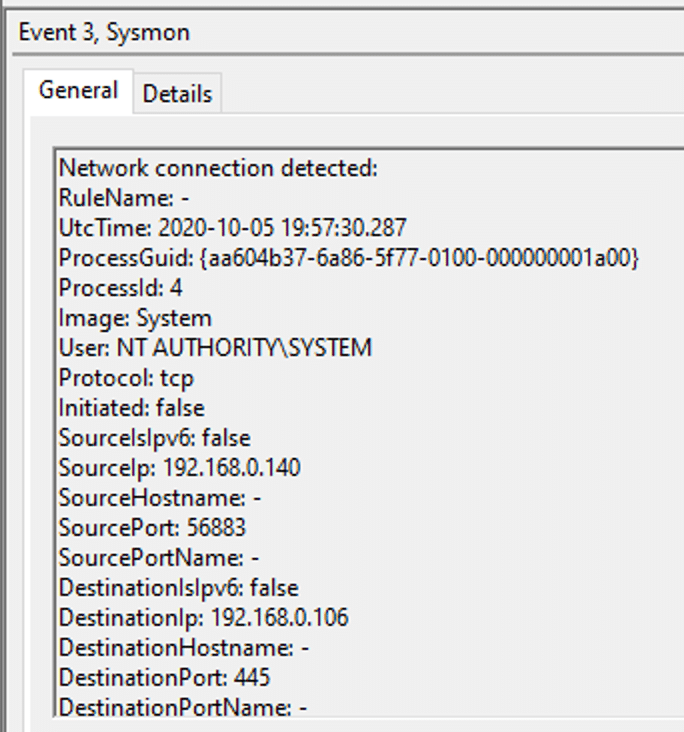

Correlating the associated ProcessGuid with other recent events will lead to event ID 3:

This event shows that shortly before the file creation event, the same process (System) received a network connection on port 445 (SMB).

Interpreting these two events, we now have a meaningful way to detect DLL writes over SMB.

It is of course possible to further refine this by attempting to detect the trigger, however given the variety of potential different approaches, this is much less reliable.

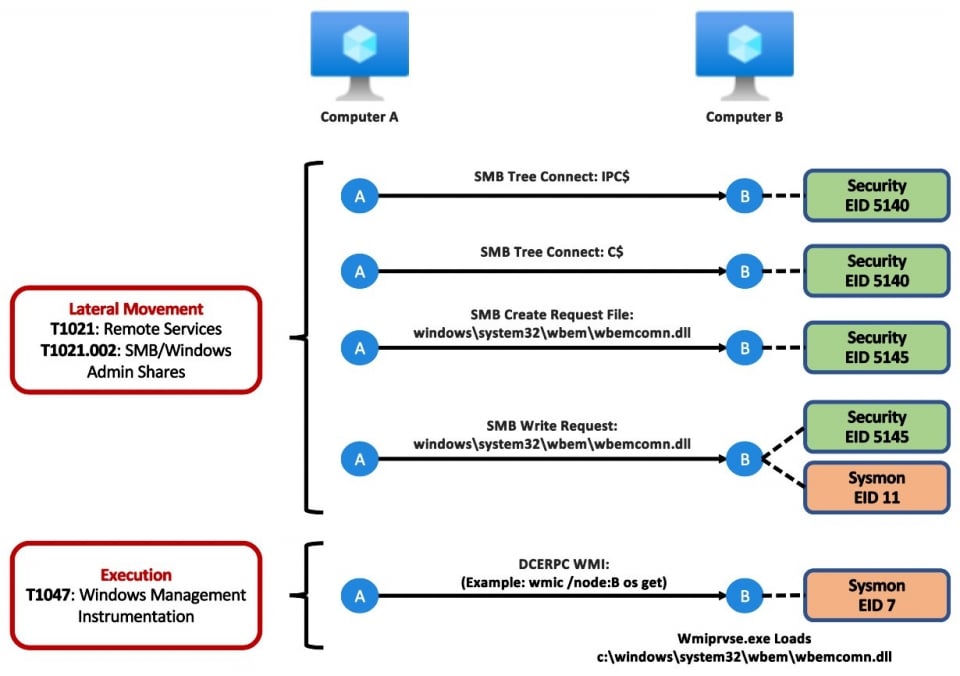

The workflow for the event IDs for the WMI wbemcomn.dll hijack can be summarised as (courtesy of @Cyb3rWard0g):

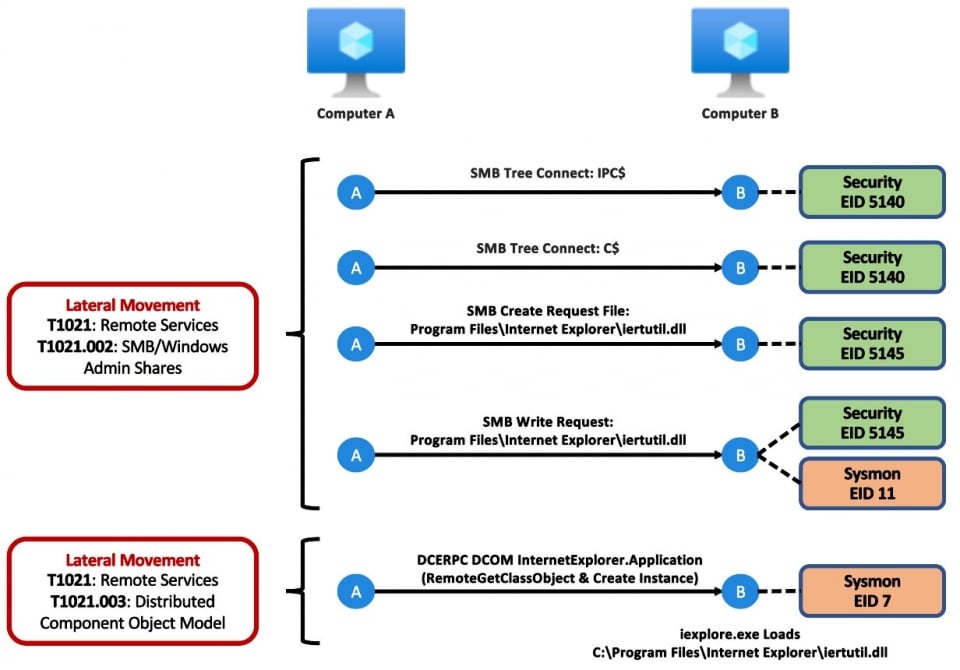

While the InternetExplorer.Application iertutil.dll hijack can be summarised as follows:

If you’re interested in building a detection capability for these techniques, we teamed up with @Cyb3rWard0g again to produce Mordor datasets and more details in the Threat Hunter’s Playbook:

Here are some basic Sigma rules that can also be used to detect these specific use cases.

A big thanks to Roberto for his input in helping shape the detection strategies and data.

This blog post was written by Dominic Chell.
